Yamaha MT-09 RN29 [2014-2016] - Rear wheel monoshock gas

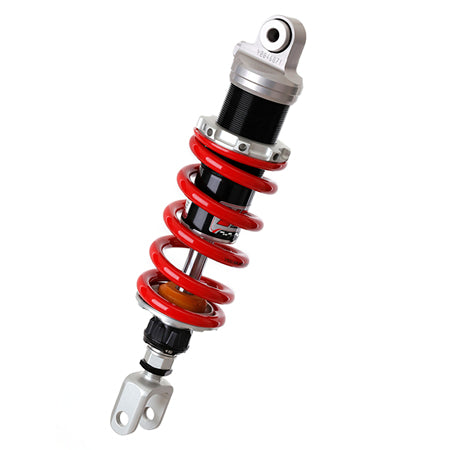

YSS rear monoshock gas for Yamaha MT-09 RN29

The YSS rear wheel monoshock gas offers adjustable options to suit different driving conditions and personal requirements. The vehicle assignment applies to the Yamaha MT-09 RN29 from the 2014-2016 model year range.

Adjustable functions

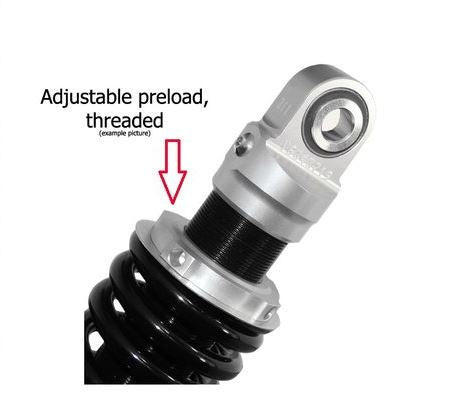

• The spring preload can be adjusted using the thread adjustment or the adjustable spring screw.
• A bolt supplied can then fix the adjustment ring in its position.

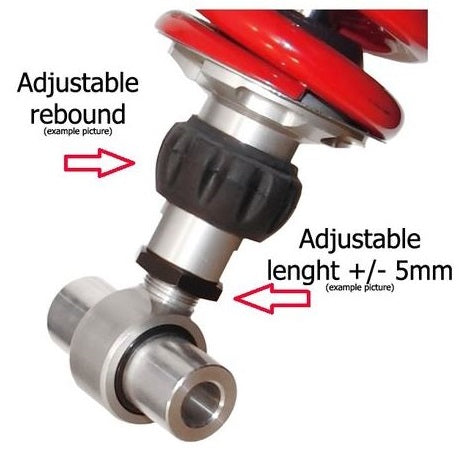

• The rebound setting allows the rebound to be adjusted. Tuning can be done faster or slower as needed.
• The adjustable length allows the shock absorber length to be changed within the specified range.

Technical data

• Shock absorber piston diameter: 45mm
• Shock absorber rod diameter: 16mm
• Length: 325-335mm
• Spring Rate: 56-100-150
• Homologation: E-approved

Vehicle assignment

The shock absorber is assigned to the Yamaha MT-09 RN29, built between 2014 and 2016. Selection should be based on this full model and year range.

Note on voting

Spring preload, rebound and length are adjusted to the intended use and the desired chassis setup using the respective adjustment options. The technical values ​​support a targeted selection of the rear wheel monoshock for the vehicle mentioned.
