Yamaha DT 125 LC [1982-1983] - WÖSSNER forged pistons

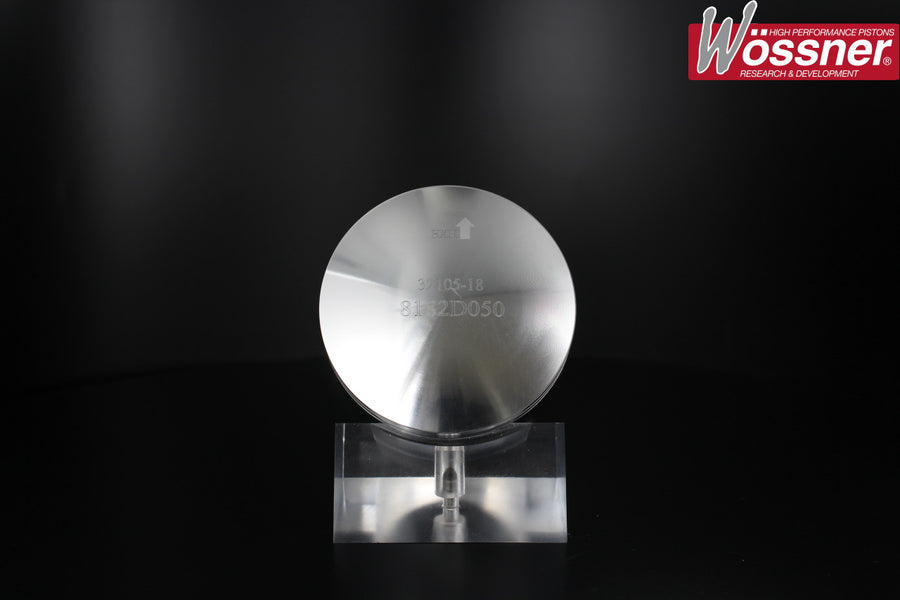

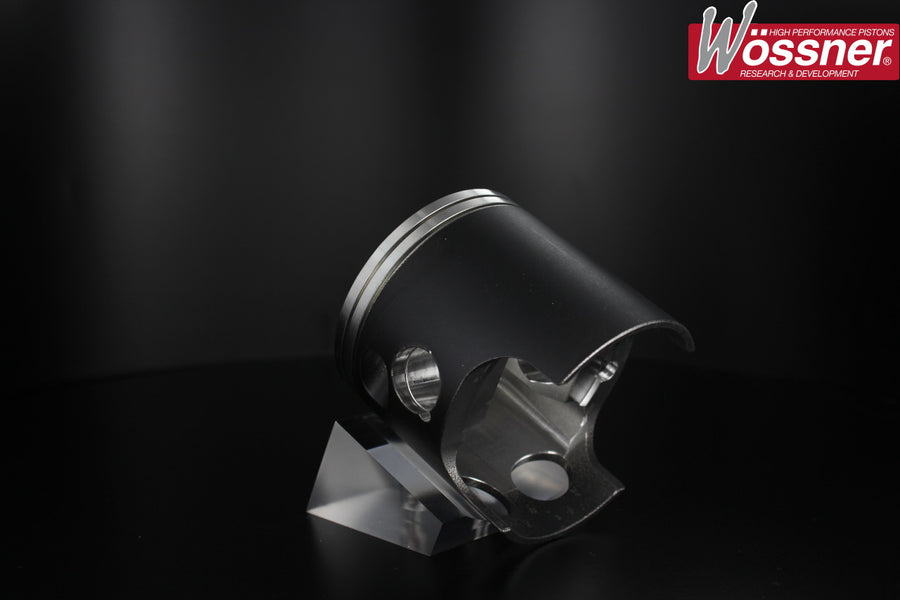

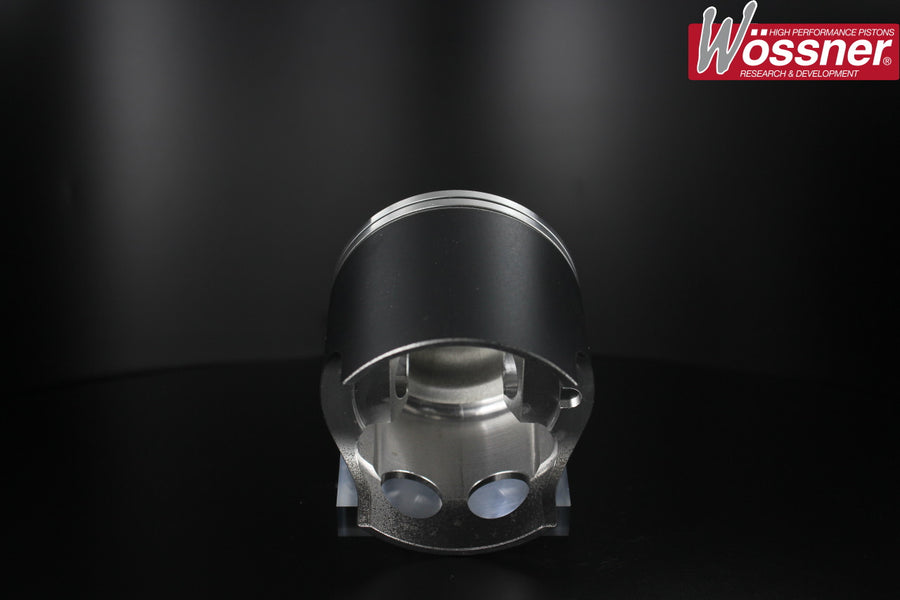

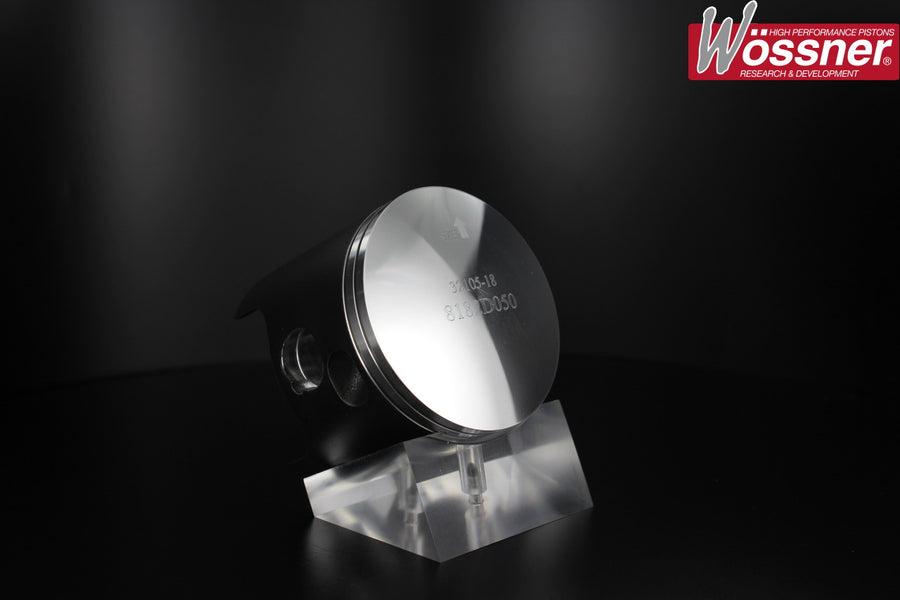

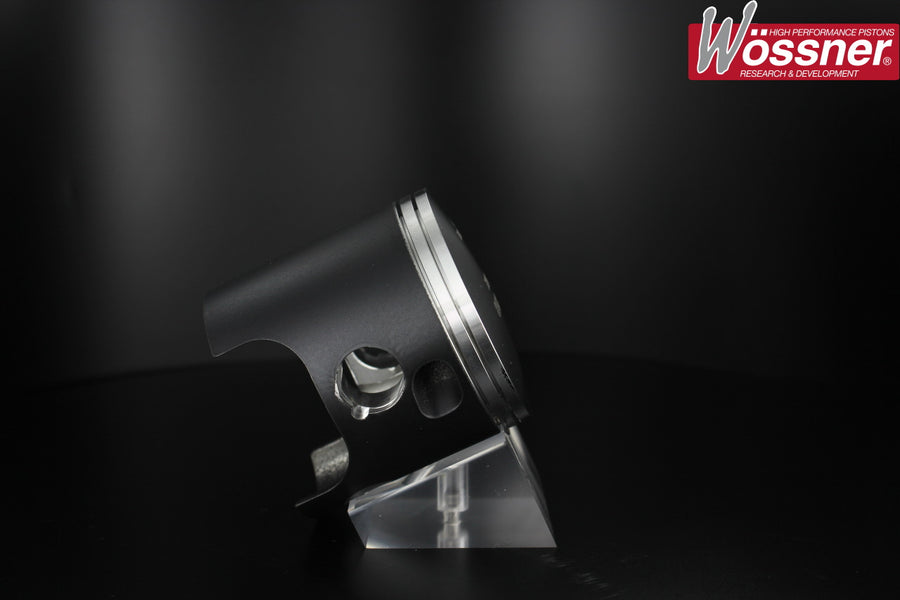

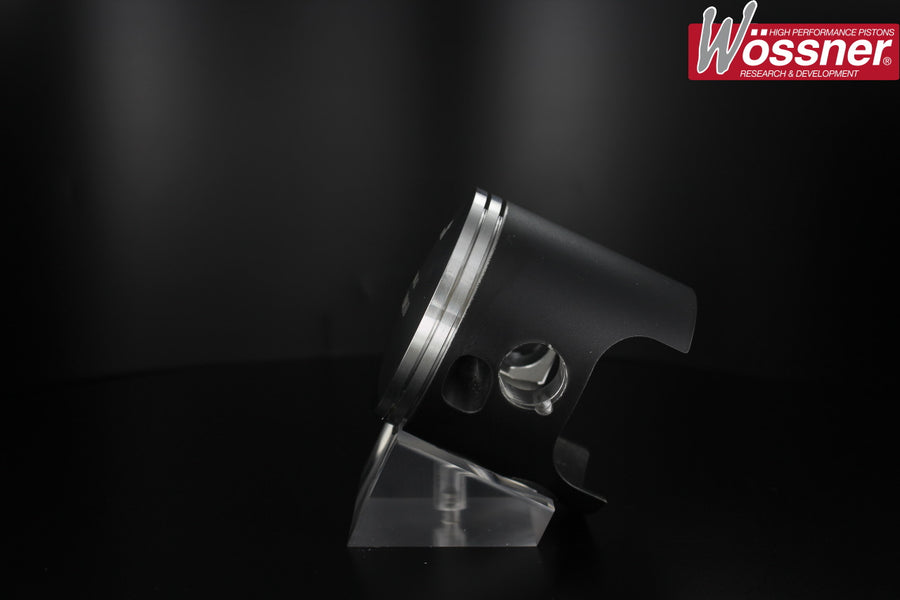

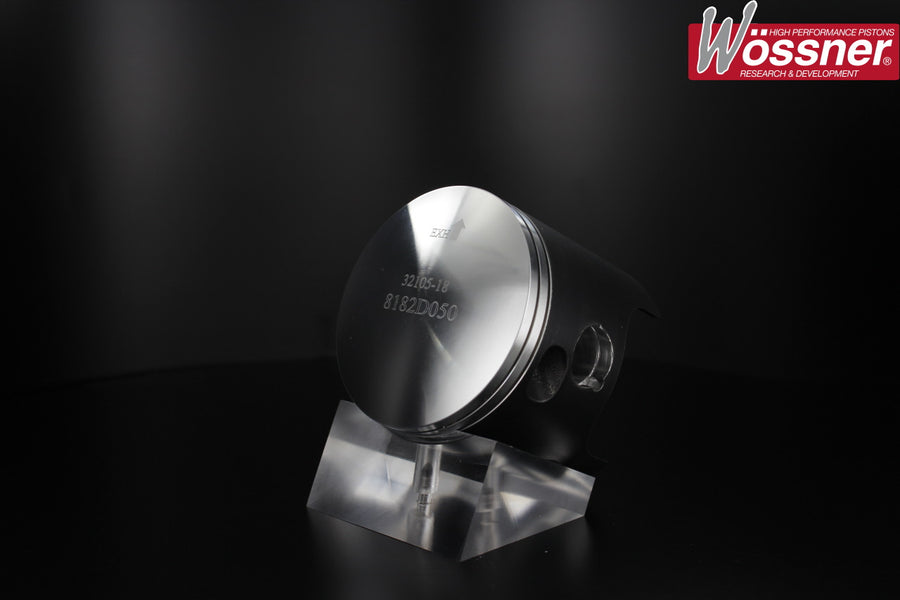

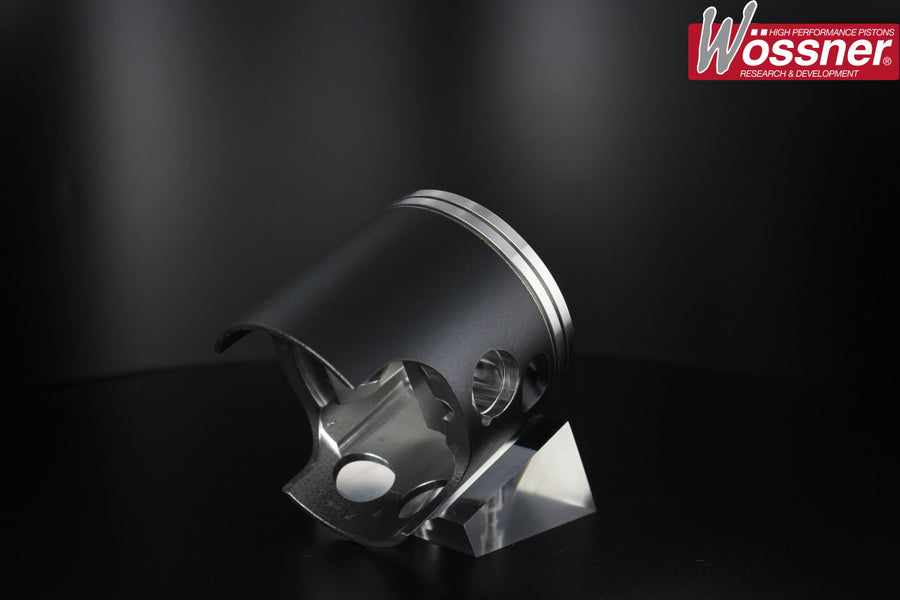

WÖSSNER forged pistons for Yamaha DT 125 LC 1982-1983

The WÖSSNER forged piston is designed as a replacement component for the Yamaha DT 125 LC in the entire 1982–1983 model year range. The assignment applies exclusively to this vehicle and this year of manufacture.

Design and technical features

The piston is made of aluminum and is forged. Piston compression is standard. The specified dimensions and markings are decisive for selecting the appropriate version.

• Material: aluminum
• Piston Type: Forged
• Piston compression: standard
• Diameter Ø: 67.44 mm
• Letter oversize: 150
• Oversize: +1.50
• Bore diameter: 67.50 mm
• Rings Quantity: 2
• Stroke: 2T
• Specificity: With suction window

Suitable for

This WÖSSNER forged piston is assigned to the Yamaha DT 125 LC, built between 1982 and 1983. Before making your selection, check in particular the diameter Ø, bore diameter and the oversize +1.50 marking so that the version matches the intended motor dimensions.

Factual selection aid

The version with 2 rings, standard piston compression and intake window combines the relevant technical features for clear selection within the vehicle classification mentioned. The dimensions 67.44 mm and 67.50 mm as well as the oversize marking 150 and +1.50 should be taken into account when comparing.
