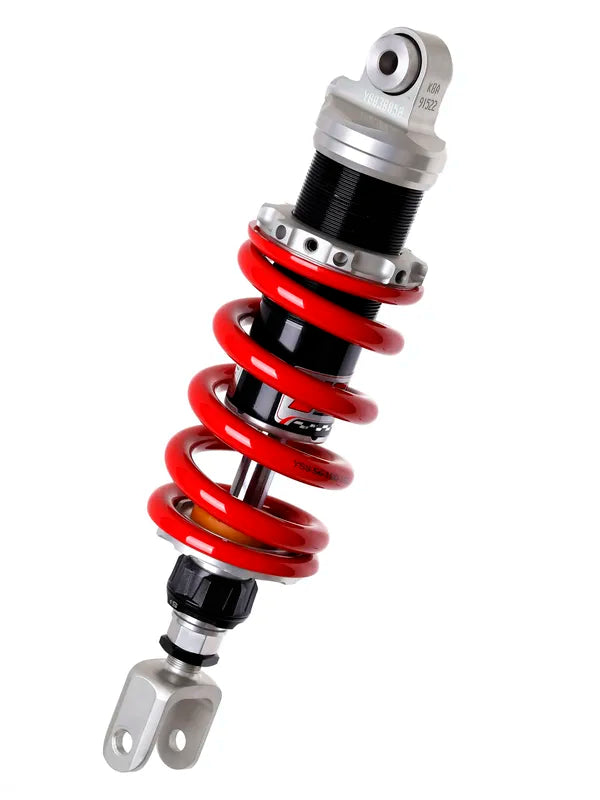

Suzuki GSF 1250 [YSS] – gas pressure emulsion mono shock absorber, adjustable length

YSS gas pressure emulsion mono shock absorber for Suzuki GSF 1250

The YSS gas pressure emulsion mono shock absorber is specially designed for the rear suspension of the Suzuki GSF 1250. It combines a robust design with a wide range of adjustment options to individually adapt the chassis dynamics.

Technical features

• Bore size: 45.00mm (1.77")
• Damping method: emulsion
• Adjustable rebound damping for precise chassis tuning
• Length adjustable with a height adjustment of ±5 mm
• Thread-adjustable spring preload to adjust the spring characteristic
• Manual adjustment for easy operation without special tools
• Extended Length: 320.00mm (12.60")
• Spring Type: Simple Linear Spring Rate
• Materials: Aluminum and steel for high stability and durability
• Color design: combination of silver, red and black

Function and area of application

The shock absorber is intended for installation on the rear axle of the motorcycle. The emulsion damping ensures balanced suspension characteristics that react to different driving conditions. The adjustable rebound damping allows the rebound behavior to be adjusted, while the adjustable spring preload influences the basic spring hardness. By adjusting the length, the ride height can be fine-tuned, which affects the handling and ground clearance.

Material and workmanship

The shock absorber is made of high-quality materials such as aluminum and steel, which offer a combination of low weight and high resilience. The surface is in silver, red and black, which combines an attractive look with functional robustness.

Scope of delivery and assembly

The product is delivered individually and is suitable as a replacement or upgrade part for the original rear suspension strut of the Suzuki GSF 1250. Installation takes place at the intended position at the rear of the vehicle. Due to the manual adjustment options, the shock absorber can be adjusted without special electronic aids.
