Description

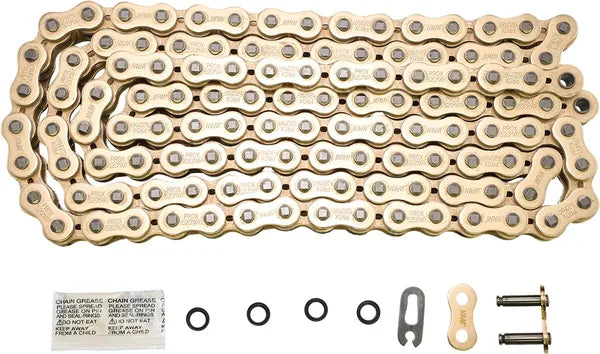

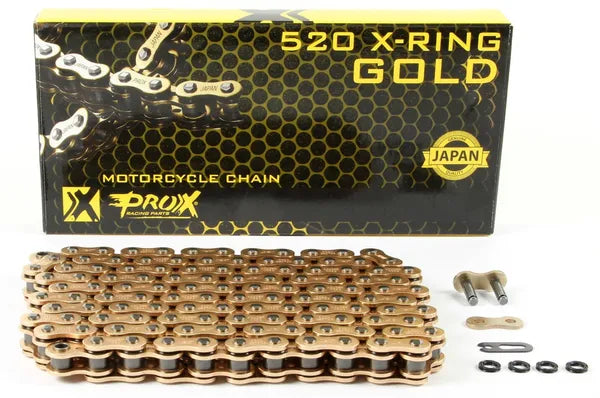

PROX 520 X-Ring drive chain for Suzuki B 120
The PROX 520 X-Ring chain is a high-quality drive chain specially developed for motorcycles with a chain size of 520. It is suitable, among other things, for the Suzuki B 120 and offers reliable power transmission in the drive train.
Technical features
- Chain type: 520MX
- Number of links: 120
- Seal Type: QX ring
- Color/Surface: Gold
- Chain lock connector: Clip
- Material: Steel
- Maximum displacement (off-road): 450cc
The chain features QX-Ring seals that provide improved sealing between links. This reduces wear and increases the life of the chain. The gold-colored surface is not only visually appealing, but also offers additional protection against corrosion.
Properties and application
The PROX 520 X-Ring chain is designed for off-road use up to a displacement of 450 cc. It is available piece by piece and can be easily installed and maintained with a clip chain lock. The use of high-quality steel ensures high strength and resilience, which ensures safe power transmission in the drive train.
This drive chain is part of the DRIVE TRAIN GROUP and belongs to the DRIVE CHAIN -X'RING TYPES product type category. It is suitable for use on motorcycles that require a 520 chain and is a suitable replacement or upgrade component.
Summary
- Suitable for Suzuki B 120 and other motorcycles with chain size 520
- QX ring seal for longer life
- Gold-colored, corrosion-resistant finish
- Steel material for high resilience
- Easy installation with clip chain lock
- Suitable for off-road motorcycles with a displacement of up to 450 cc
Show suitable vehicles (500)
| Brand | model | displacement | Year of construction | Variant | country | position | Note |
|---|---|---|---|---|---|---|---|
| APRILIA | RXV 450 | 449 | 2006-2011 | 4.5 | ALL | ||
| APRILIA | RXV 550 | 553 | 2007-2011 | 5.5 | ALL | ||
| APRILIA | SXV 450 | 449 | 2006 | 4.5 | EUROPE | ||
| APRILIA | SXV 450 | 449 | 2007-2011 | 4.5 | ALL | ||
| APRILIA | SXV 550 | 553 | 2006 | 5.5 | EUROPE | ||
| APRILIA | SXV 550 | 553 | 2007-2011 | 5.5 | ALL | ||
| BETA | RR 125 | 125 | 2018-2019 | ALL | |||
| BETA | RR 125 | 125 | 2019 | Racing | ALL | ||
| BETA | RR200 | 190 | 2019 | Oil mix | ALL | ||
| BETA | RR 250 | 249 | 2006-2007 | EUROPE | |||
| BETA | RR 250 | 249 | 2013-2018 | ALL | |||
| BETA | RR 250 | 249 | 2014-2019 | Racing | ALL | ||
| BETA | RR 250 | 249 | 2019 | Oil mix | ALL | ||
| BETA | RR300 | 293 | 2013-2018 | ALL | |||
| BETA | RR300 | 293 | 2014-2019 | Racing | ALL | ||
| BETA | RR300 | 293 | 2019 | Oil mix | ALL | ||
| BETA | RR300 | 293 | 2019 | Steve Holcombe Replica | ALL | ||
| BETA | RR 350 | 349 | 2011-2014 | ALL | |||
| BETA | RR390 | 386 | 2015 | ALL | |||
| BETA | RR400 | 398 | 2012-2014 | ALL | |||
| BETA | RR 430 | 431 | 2015 | ALL | |||
| BETA | RR 430 | 431 | 2015 | Racing | ALL | ||
| BETA | RR 430 EFI | 431 | 2016-2019 | ALL | |||
| BETA | RR 430 EFI | 431 | 2016-2019 | Racing | ALL | ||
| BETA | RR 450 | 449 | 2012-2014 | ALL | |||
| BETA | RR 480 | 478 | 2015 | ALL | |||
| BETA | RR 480 | 478 | 2015 | Racing | ALL | ||
| BETA | RR 480 EFI | 478 | 2016-2019 | ALL | |||
| BETA | RR 480 EFI | 478 | 2016-2019 | Racing | ALL | ||
| BETA | RR 520 | 498 | 2010-2012 | ALL | |||
| BETA | RR 520 | 498 | 2011 | Factory | ALL | ||
| BETA | RR 525 | 510 | 2006-2009 | ALL | |||
| BETA | RR 525 | 510 | 2009 | Racing | ALL | ||
| BETA | RX250 | 249 | 2026 | 2T | ALL | ||
| BETA | RX300 | 293 | 2021-2025 | 2T | ALL | ||
| BETA | RX350 | 352 | 2026 | 2T | ALL | ||
| BETA | RX450 | 449 | 2024-2026 | 4T | ALL | ||
| BETA | XTRAINER 250 | 249 | 2026 | ALL | |||
| BETA | XTRAINER 250 | 249 | 2026 | Lowboy | ALL | ||
| BETA | XTRAINER 250 LC | 249 | 2018-2019, 2024-2025 | Oil mix | ALL | ||
| BETA | XTRAINER 250 LC | 249 | 2020-2023 | Oil mix | EUROPE | ||
| BETA | XTRAINER 300 | 293 | 2026 | Oil mix | ALL | ||
| BETA | XTRAINER 300 LC | 293 | 2015-2018 | ALL | |||
| BETA | XTRAINER 300 LC | 293 | 2019-2025 | Oil mix | ALL | ||
| BMW | G 450 | 450 | 2008-2011 | ALL | |||
| FANTIC | XE 125 | 124 | 2021-2024 | EUROPE | |||
| FANTIC | XE 125 | 124 | 2024 | Launch version | EUROPE | ||
| FANTIC | XE 125 | 124 | 2025 | ALL | |||
| FANTIC | XE300 | 293 | 2024-2025 | ALL | |||
| FANTIC | XEF250 | 250 | 2021-2024 | EUROPE | |||
| FANTIC | XEF250 | 250 | 2021-2024 | trail | EUROPE | ||
| FANTIC | XEF310 | 304 | 2024 | EUROPE | |||
| FANTIC | XEF450 | 449 | 2022-2025 | EUROPE | |||
| FANTIC | XEF450 | 449 | 2023 | Rally | EUROPE | ||
| FANTIC | XEF450 | 449 | 2023 | Rally Factory | EUROPE | ||
| FANTIC | XEF450 | 449 | 2024-2025 | Rally | ALL | ||
| FANTIC | XEF450 | 449 | 2024-2025 | Rally Factory | ALL | ||
| FANTIC | XX125 | 124 | 2021-2024 | EUROPE | |||
| FANTIC | XX125 | 124 | 2024 | Launch version | EUROPE | ||
| FANTIC | XX125 | 124 | 2025 | ALL | |||
| FANTIC | XX250 | 249 | 2022-2024 | EUROPE | |||
| FANTIC | XX250 | 249 | 2024 | Launch version | EUROPE | ||
| FANTIC | XX250 | 249 | 2025 | ALL | |||
| FANTIC | XXF 250 | 250 | 2022-2024 | EUROPE | |||
| FANTIC | XXF 250 | 250 | 2025 | ALL | |||
| FANTIC | XXF 450 | 450 | 2022-2024 | EUROPE | |||
| FANTIC | XXF 450 | 450 | 2025 | ALL | |||
| GAS GAS | EC125 | 125 | 1997-2000 | ALL | |||
| GAS GAS | EC125 | 124 | 2001-2010 | ALL | |||
| GAS GAS | EC250 | 250 | 1997-2000 | ALL | |||
| GAS GAS | EC250 | 249 | 2001-2014, 2018-2019, 2021-2025 | ALL | |||
| GAS GAS | EC250 | 249 | 2012 | Guillaume Replica | ALL | ||
| GAS GAS | EC250 | 249 | 2019 | Six Days Chile | ALL | ||
| GAS GAS | EC 250 F | 250 | 2012 | Sixdays | ALL | ||
| GAS GAS | EC 250 F | 250 | 2012-2013, 2021-2025 | ALL | |||
| GAS GAS | EC 250 F | 250 | 2014 | Cami | ALL | ||
| GAS GAS | EC 250 F | 250 | 2014-2015 | Racing | ALL | ||
| GAS GAS | EC300 | 300 | 1999-2000 | ALL | |||
| GAS GAS | EC300 | 299 | 2001-2014, 2018-2019 | ALL | |||
| GAS GAS | EC300 | 299 | 2012 | Guillaume Replica | ALL | ||
| GAS GAS | EC300 | 299 | 2019 | Six Days Chile | ALL | ||
| GAS GAS | EC300 | 293 | 2021-2026 | ALL | |||
| GAS GAS | EC300 | 293 | 2025 | GP | ALL | ||
| GAS GAS | EC 300 F | 299 | 2013 | ALL | |||
| GAS GAS | EC 300 F | 299 | 2014-2015 | Racing | ALL | ||
| GAS GAS | EC 300 NAMBOTIN | 299 | 2011 | ALL | |||
| GAS GAS | EC 350 F | 350 | 2021-2026 | ALL | |||
| GAS GAS | EC 450 F | 450 | 2013 | EUROPE | |||
| GAS GAS | EC 450 F | 450 | 2014-2015 | Racing | EUROPE | ||
| GAS GAS | EC 450 F | 450 | 2024-2025 | ALL | |||
| GAS GAS | EC 500 F | 510 | 2024-2026 | ALL | |||
| GAS GAS | EX250 | 249 | 2022-2025 | AMERICA | |||
| GAS GAS | EX 250 F | 250 | 2021-2025 | AMERICA | |||
| GAS GAS | EX300 | 299 | 2021-2025 | AMERICA | |||
| GAS GAS | EX 350 F | 350 | 2021-2025 | AMERICA | |||
| GAS GAS | EX 450 F | 450 | 2021-2024 | AMERICA | |||
| GAS GAS | HALLEY 450 SM | 450 | 2009 | Supermoto | EUROPE | ||
| GAS GAS | HP-WILD 240 | 240 | 2004-2006 | ALL | |||
| GAS GAS | HP-WILD 300 | 300 | 2003-2005 | ALL | |||
| GAS GAS | HP-WILD 450 | 450 | 2004-2007 | ALL | |||
| GAS GAS | MC125 | 125 | 2001-2007, 2021-2027 | ALL | |||
| GAS GAS | MC150 | 144 | 2025 | ALL | |||
| GAS GAS | MC250 | 250 | 2001-2009 | ALL | |||
| GAS GAS | MC250 | 249 | 2022-2026 | ALL | |||
| GAS GAS | MC 250 F | 250 | 2021-2027 | ALL | |||
| GAS GAS | MC 250 F | 250 | 2024 | Factory Edition | ALL | ||
| GAS GAS | MC300 | 293 | 2025 | ALL | |||
| GAS GAS | MC 350 F | 350 | 2023-2025 | ALL | |||
| GAS GAS | MC 450 F | 450 | 2021-2027 | ALL | |||
| GAS GAS | MC 450 F | 450 | 2022 | Troy Lee | ALL | ||
| GAS GAS | MC 450 F | 450 | 2024-2025 | Factory Edition | ALL | ||
| GAS GAS | MC 450 F | 450 | 2025 | Prado edition | ALL | ||
| GAS GAS | SM 450 FSR | 450 | 2008-2009 | EUROPE | |||
| GAS GAS | SM 450 IU | 450 | 2007 | EUROPE | |||
| GAS GAS | XC250 | 249 | 2018-2019 | ALL | |||
| GAS GAS | XC300 | 299 | 2018-2019 | ALL | |||
| HONDA | ATC 185 S | 180 | 1981-1983 | ALL | |||
| HONDA | ATC 200 S | 192 | 1984-1986 | ALL | |||
| HONDA | CR 125 R | 125 | 1979 | Elsinore | AMERICA | ||
| HONDA | CR 125 R | 125 | 1980-1983 | AMERICA | |||
| HONDA | CR 125 R | 125 | 1984-2007 | ALL | |||
| HONDA | CR 250 R | 250 | 1973-1979 | Elsinore | AMERICA | ||
| HONDA | CR 250 R | 250 | 1981-1983 | AMERICA | |||
| HONDA | CR 250 R | 250 | 1984-2007 | ALL | |||
| HONDA | CR 480 R | 480 | 1982-1983 | Elsinore | ALL | ||
| HONDA | CR 500 R | 500 | 1984-2001 | ALL | |||
| HONDA | CRF 150 F | 150 | 2003-2009, 2012-2017 | AMERICA | |||
| HONDA | CRF 230 F | 230 | 2004-2009, 2012-2017 | AMERICA | |||
| HONDA | CRF 230 F | 223 | 2019 | AMERICA | |||
| HONDA | CRF 230 L | 230 | 2008-2009 | AMERICA | |||
| HONDA | CRF 250 F | 249 | 2019-2022 | AMERICA | |||
| HONDA | CRF 250 F | 249 | 2023-2025 | ALL | |||
| HONDA | CRF 250 L | 250 | 2015-2016 | ALL | |||
| HONDA | CRF 250 L | 250 | 2017, 2020 | Rally | AMERICA | ||
| HONDA | CRF 250 L | 250 | 2017-2020 | AMERICA |
