Mv Agusta F3 800 [2013-2020] - Left 5-Button Switch Assembly for I2M Dashboard

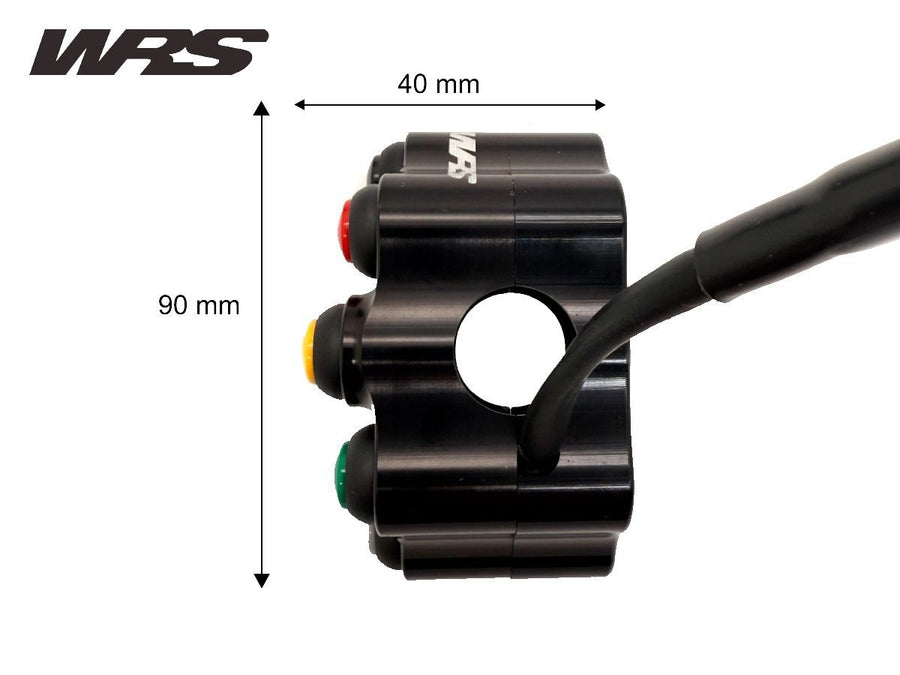

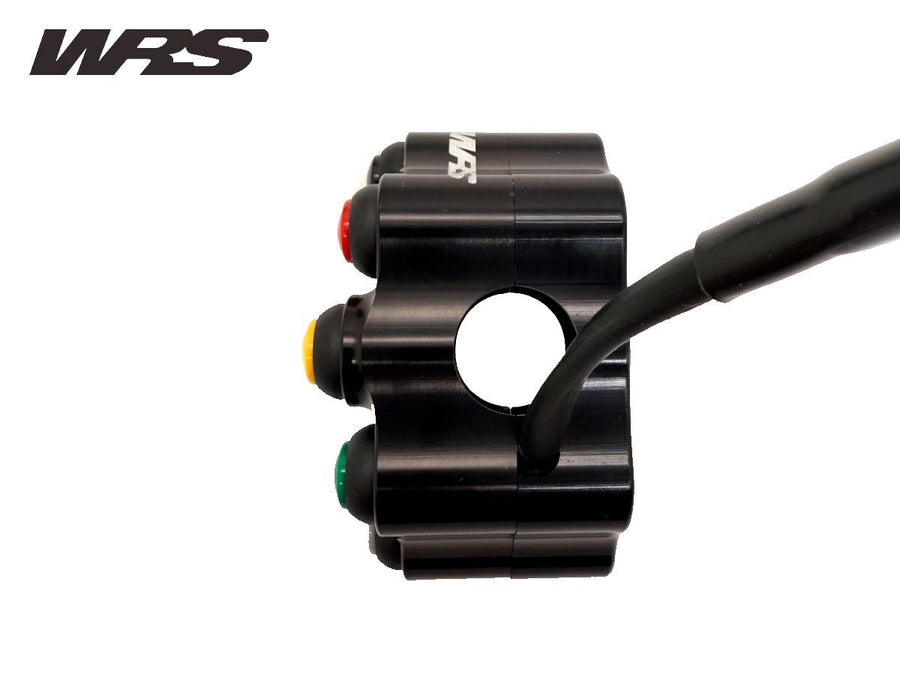

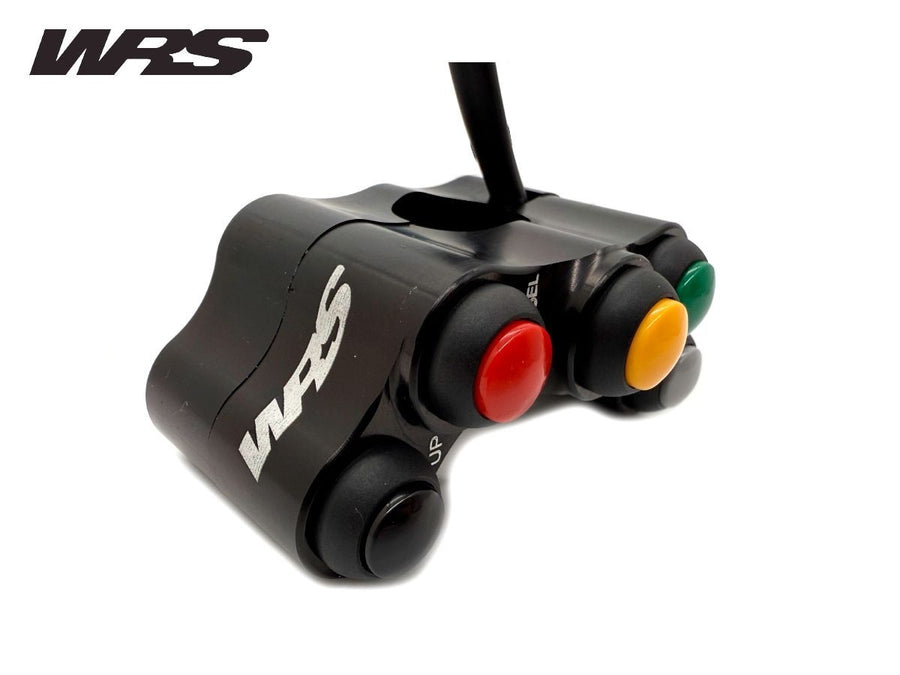

5-button switch assembly for I2M instruments

The left switch assembly is designed specifically for the 2013-2020 Mv Agusta F3 800 and provides five buttons for controlling a compatible I2M dashboard. Its housing is machined from solid 7075 aluminium and finished with black hard anodising.

High-quality construction

• Solid-machined 7075 aluminium, also known as Ergal
• Black hard-anodised surface

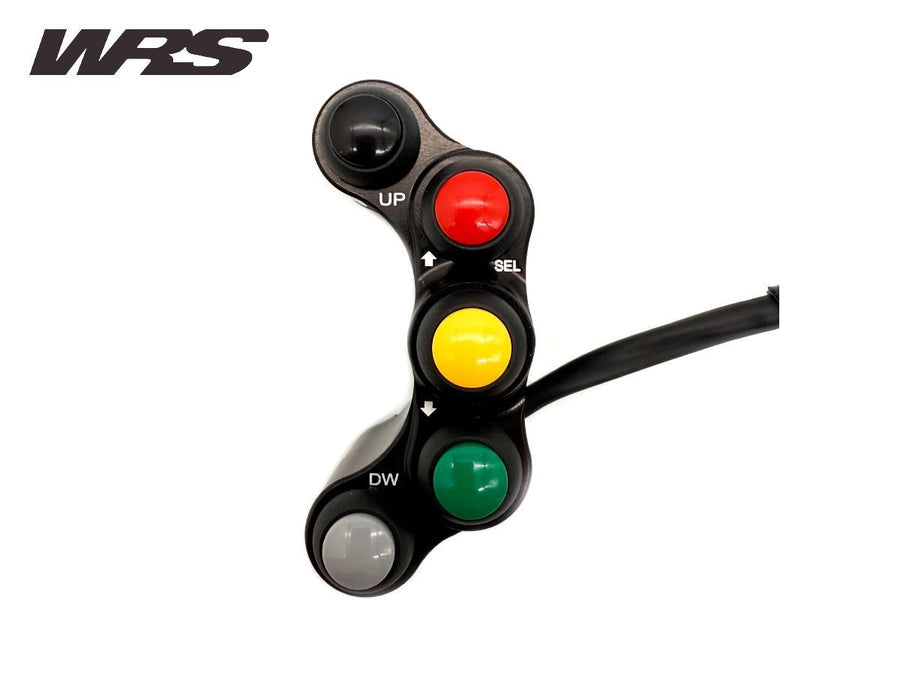

• Control panel with five buttons
• Cables sealed against water and dust ingress
• Black version with code PS004I2M

Intended instrumentation

This control unit is designed exclusively for I2M instruments and is compatible with the I2M CHROME PRO 2 dashboard. It is not intended for use with other instrument systems.

Installation and required components

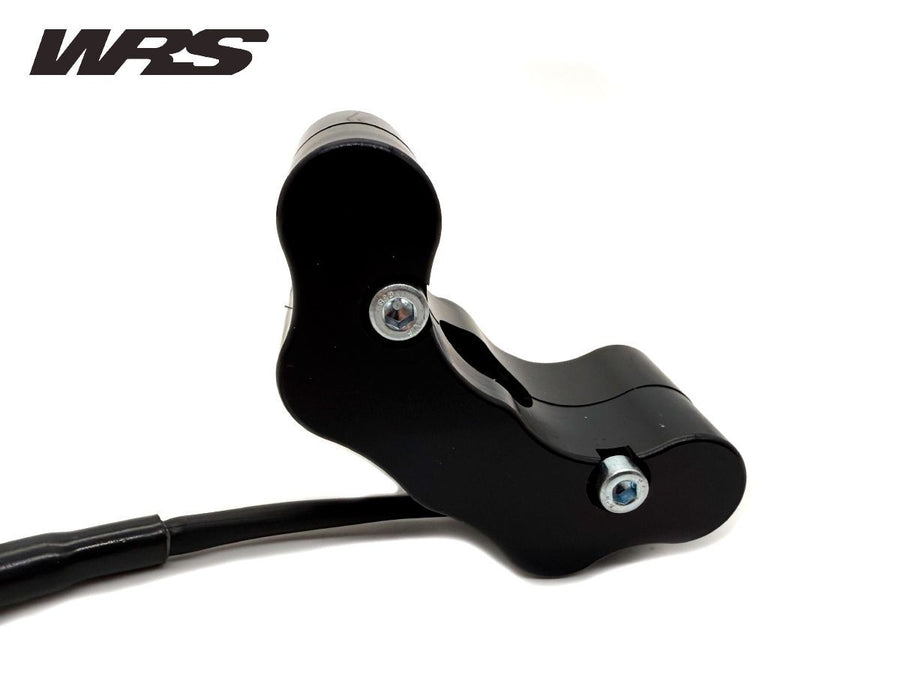

For installation, the original button panel is removed and replaced with the new switch assembly. No modifications to the motorcycle are required, and it can later be returned to its original condition. The component replaces the U-bracket of the original brake master cylinder or a Brembo-RCS brake master cylinder. When used with other master cylinders, the CV001 bridge is also required.

Approval

No ABE is available for this product.
