Description
Manufacturer/brand: False
Model: Ø 31.

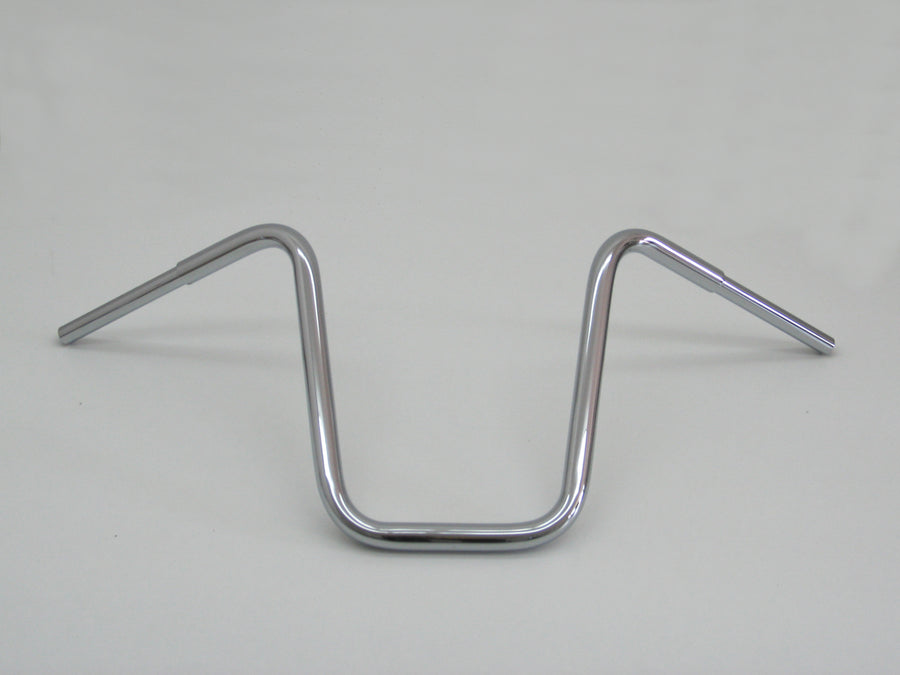

Article: Handlebar for chopper and cruiser 1010 mm wide.
The motorcycle driver from Fehling, model Ø 31, is specially designed for chopper and cruiser and offers a width of 1010 mm. This handlebar is compatible with Harley-Davidson motorcycles that use an electronic throttle (Throttle by Wire, TBW). The diameter of the handle is 25.4 mm (1 inch), and the handlebar itself has a diameter of 31.75 mm (1 1/4 inches).
Product details
- Brand: Fehling
- Model: Ø 31
- Article: handlebar for chopper and cruiser, 1010 mm wide
- Years of construction: K.A.
Technical specifications
- Width: 1010 mm
- Height at the end of the external bend: 410 mm
- Depth back: 240 mm
- Height at the end of the end of the handle: 320 mm
- Dimensions at the intersection of the pipe outer edges: 285 mm
Dimensions in attachment
- Height: 400 mm
- Depth back (pullback): 85 mm
Other dimensions
- Maximum handle length: 200 mm
- Maximum clamping width: 145 mm
- Knurling: none
The design of the handlebar enables internal cable laying through three prefabricated holes, which leads to a clean and tidy look. This handlebar combines functionality with a stylish design that was specially developed for modern chopper and cruisers.
