Description
Manufacturer/brand: False
Model: Ø 25.

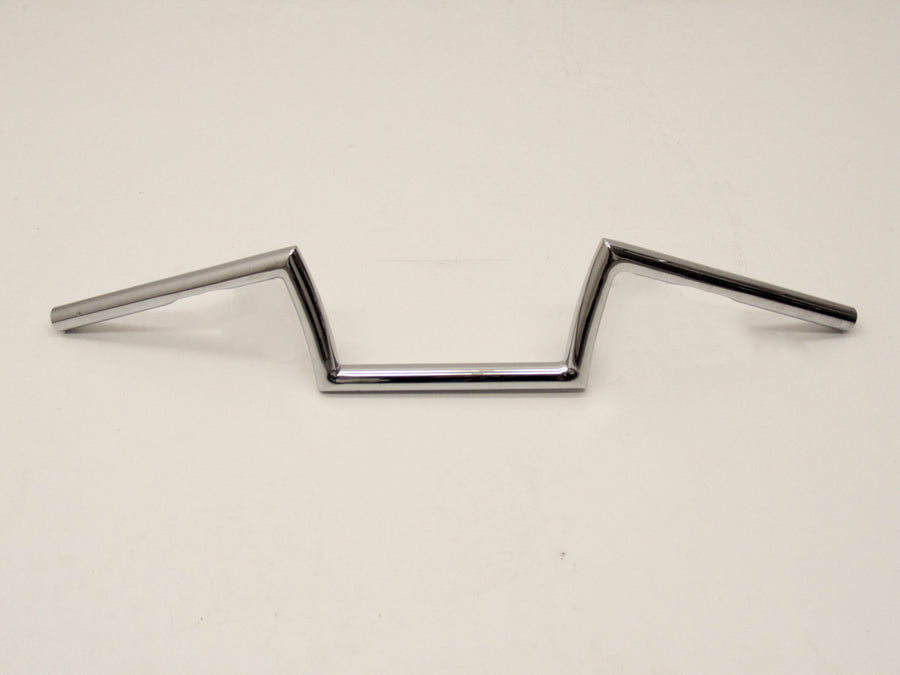

Article: Z-Lenker 780 mm wide.
The Z-Lenker 780 mm wide from Fehling is a motorcycle driver with a diameter of 25.4 mm, which was specially developed for optimal cable routing. This handlebar has a notch and a triple interior tour for electrical cables, which enables a clean and safe laying of the cables.
Product features
- Brand: False
- Model: Ø 25
- Article: Z-Lenker 780 mm wide
- Years of construction: K.A.
Technical details
The dimensions of the handlebar vary depending on the assembly position and handlebar setting. The basic dimensions are listed below:
- Width: 780 mm
- Height at the end of the external bend: 145 mm
- Depth back: 95 mm
- Height at the end of the end of the handle: 30 mm
- Measured at the intersection of the pipe outer edges: 250 mm
- Interior above: 270 mm
Include further relevant dimensions:
- Maximum grip length: 245 mm
- Maximum clamping width: 190 mm
- Width of the knurling (outside): 120 mm / 60 mm
The specified dimensions are measured for vertically standing handlebars. Depending on the extension and setting of the handlebar, these dimensions can vary, which must be taken into account when installing.
