Description
Manufacturer/brand: False
Model: Ø 25.
Article: T-bar handlebar 800 mm wide.

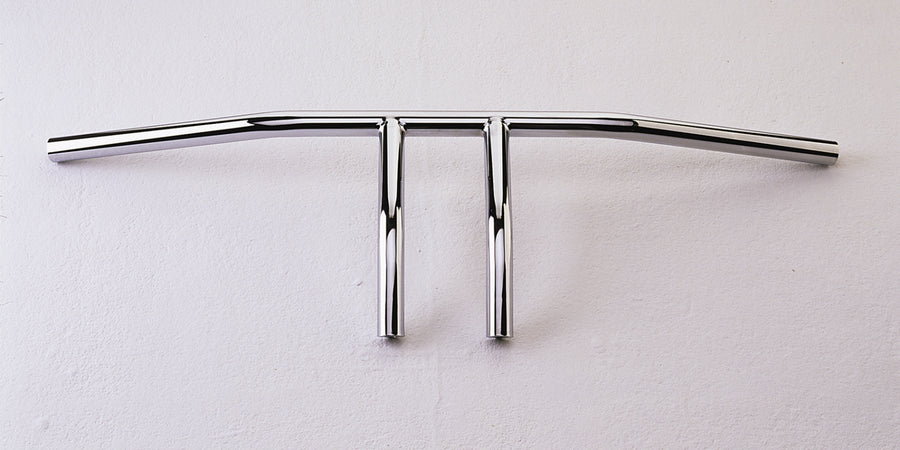

T-bar handlebar 800 mm wide
The T-bar handlebar from Fehling, model Ø 25, is characterized by its robust construction and precise dimensions. This motorcycle part is specially designed for different motorcycle models, whereby the exact years of construction are not specified.
Product details
- Brand: False
- Model: Ø 25
- Article: T-bar handlebar 800 mm wide
- Diameter: 25.4 mm (1 inch)
Technical specifications
The dimensions of the handlebar were measured with vertical alignment, whereby the values can change in the cultivation position:
- Width: 800 mm
- Height at the end of the external bend: 225 mm
- Depth back: 160 mm
- Height at the end of the end of the handle: variable
- Distance from the fastening holes: 100 mm
- Fastening thread: M 12
In the attachment, the dimensions of the handlebar vary as follows:
- Height: 235 mm
- Depth back (pullback): 185 mm
- Maximum grip length: 200 mm
This technical data enables the user to optimally adapt the handlebar to the individual needs and the specific requirements of the machine.
