Description
Manufacturer/brand: False
Model: Ø 25.
Article: M-Lenker 694 mm wide.

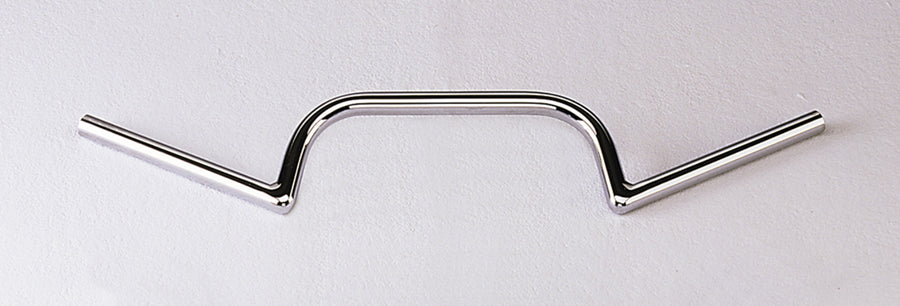

M-Lenker 694 mm wide
The M-Lenker from Fehling, model Ø 25, is specially designed for motorcycles and has a width of 694 mm. This handlebar is equipped with a notch that facilitates the laying of electrical cables.
Product details
- Brand: False
- Model: Ø 25
- Article: M-Lenker 694 mm wide
- Years of construction: K.A.
Technical specifications
The dimensions of the handlebar vary depending on the assembly position. The most important dimensions are listed here:
- Width: 694 mm
- Height at the end of the external bend: 105 mm
- Depth back: 162 mm
- Height at the end of the end of the handle: 134 mm
- Measured at the intersection of the pipe outer edges: 300 mm
- Maximum grip length: 200 mm
- Maximum clamping width: 150 mm
- Width of the knurling (outside): 120/60 mm
In addition to the standard dimensions, the assembly positions of the handlebar offer further specific values:
- Height in attachment: -35 mm
- Depth back (pullback) in attachment: 25 mm
