Description
Manufacturer/brand: False
Model: Ø 25.
Article: Deliver for chopper and cruiser 920 mm wide.

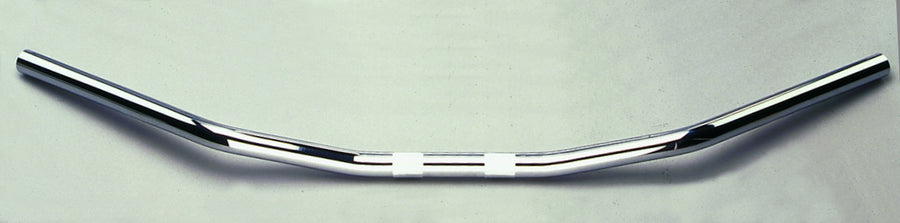

Product description: handlebar for chopper and cruiser 920 mm wide
The motorcycle driver from Fehling, model Ø 25, is specially designed for chopper and cruiser and offers a width of 920 mm. This handlebar is characterized by a diameter of 25.4 mm (1 inch) and is equipped with a notch and a 3-hole cable guide, which enables a clean and hidden laying of the cables.
Technical details
- Brand: False
- Model: Ø 25
- Article: Deliver for chopper and cruiser 920 mm wide
- Years of construction: K.A.
Dimensions and specifications
The dimensions were determined for a vertical handlebar. Note that the dimensions can differ in the attachment.
- Width: 920 mm
- Height at the end of the external bend: 60 mm
- Depth back: 150 mm
- Height at the end of the end of the handle: 25 mm
- Measured at the intersection of the pipe outer edges: 220 mm
- Height in attachment: 62 mm
- Depth back in the attachment (pullback): 120 mm
- Maximum handle length: 235 mm
- Maximum clamping width: 170 mm
- Width of the knurling (outside): 120/60 mm
These dimensions offer a detailed overview and help with the correct selection and assembly of the handlebar for your machine.
