BMW R 1200 GS ADV LC [2014-2018] - Atlas 44L Aluminum Top Case for BMW System

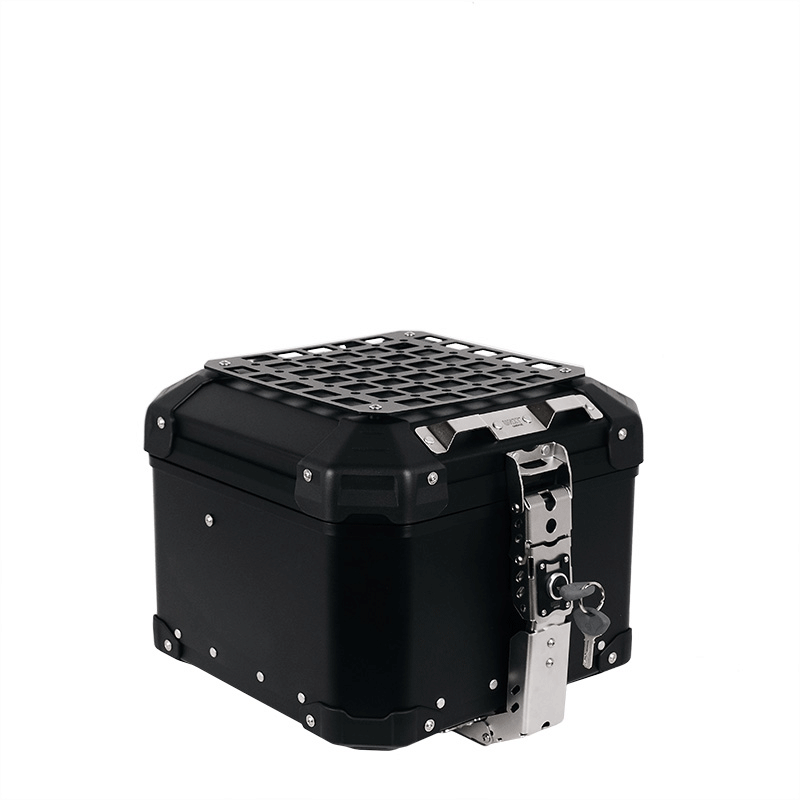

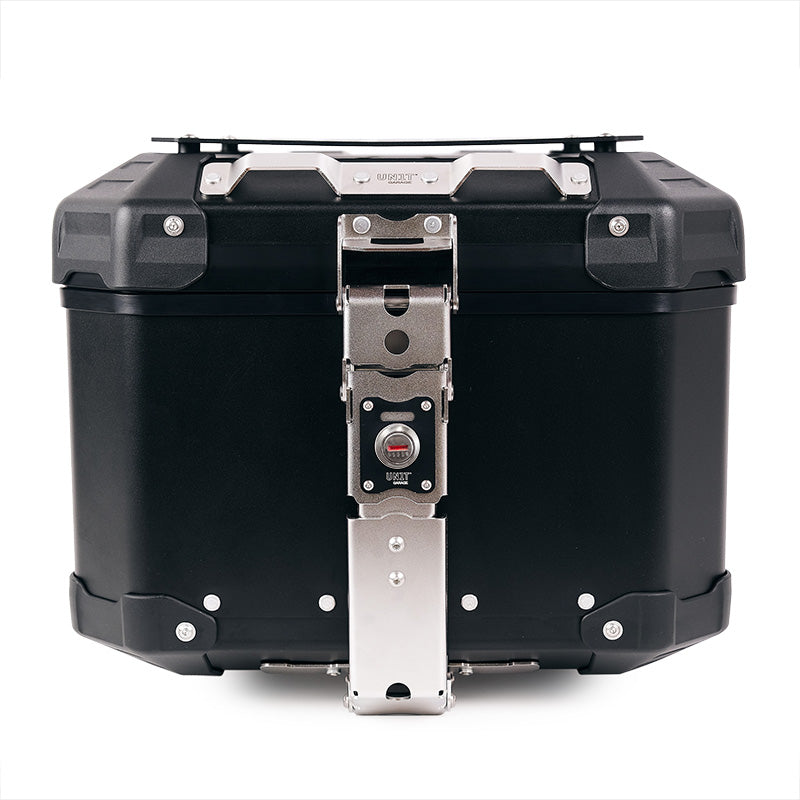

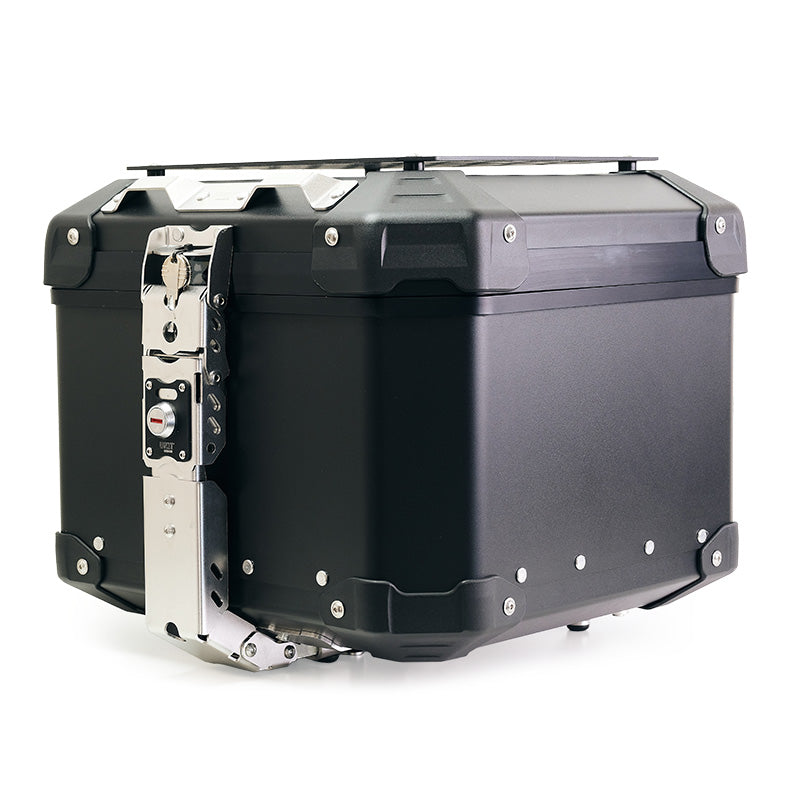

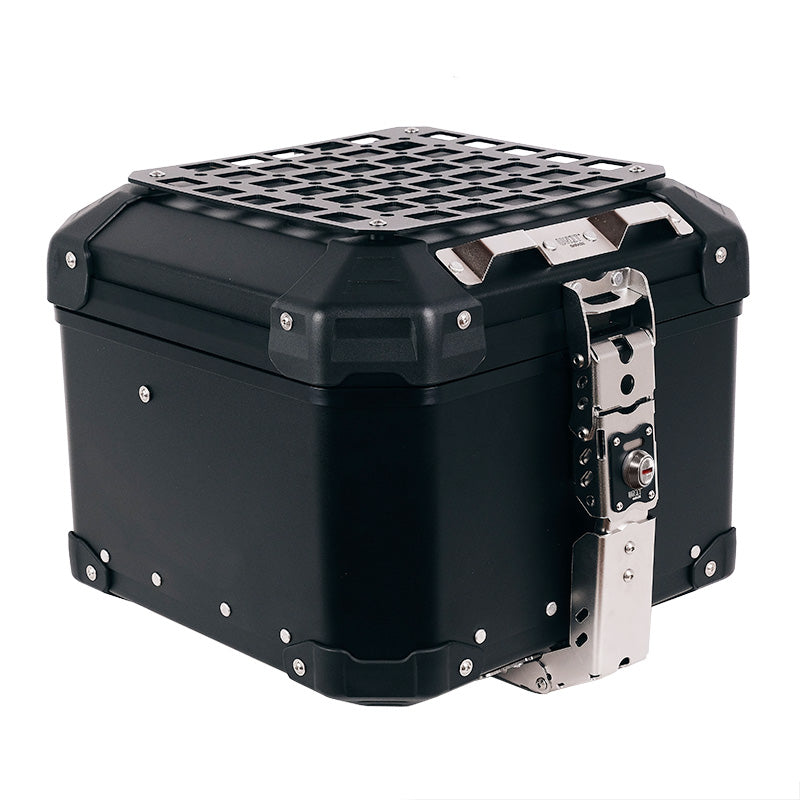

ATLAS 44-liter aluminum top case for the BMW carrier system

The hand-assembled ATLAS top case offers 44 liters of storage and room for a full-face helmet. It is designed for original BMW tubular luggage carriers and the matching Unit Garage carrier plate, combining a classic shape with rugged, replaceable components.

Design and Function

• 44-liter capacity with room for a full-face helmet

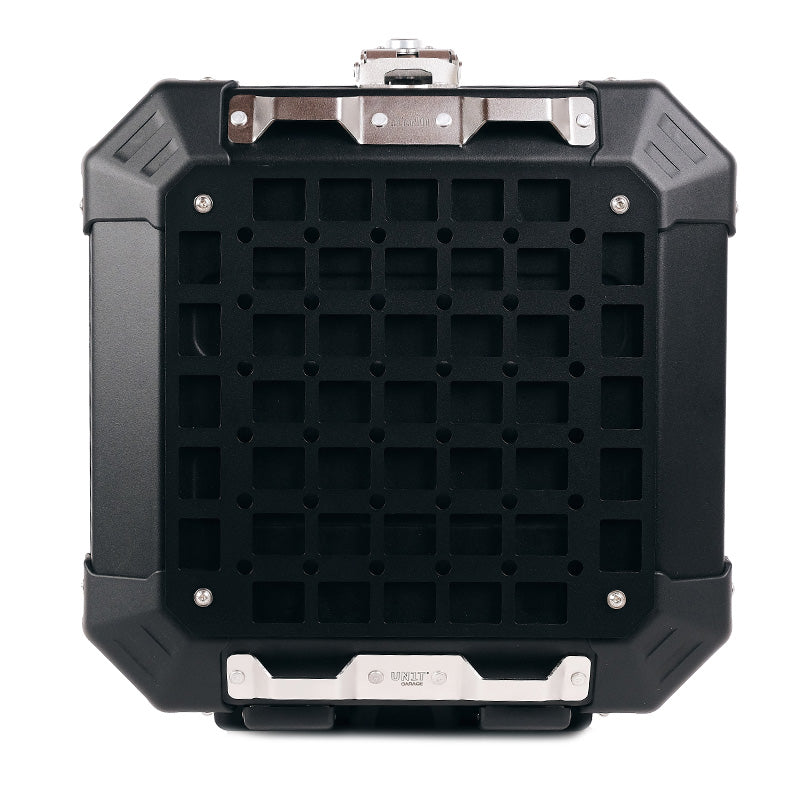

• MOLLE panel on the lid for attaching accessories
• Internal mounting options for bungee cords or other accessories
• Open and remove the top case with just one key
• Lock with additional provision for a padlock
• Seal between the lid and body
• Matte black finish

Materials and Workmanship

• Body and lid made of high-strength, 1,5 mm thick aluminum alloy

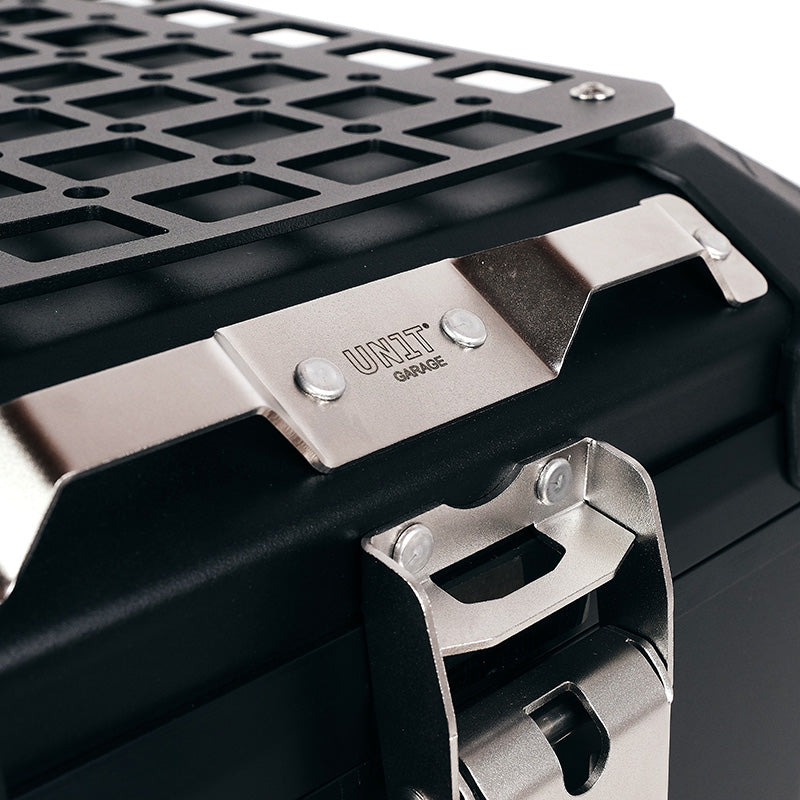

• Locks, hinges and screws made of high-quality stainless steel
• Galvanically finished and electropolished accessories
• Replaceable plastic corner protectors
• Made entirely in Italy and individually assembled by hand

Dimensions and Weight

• Height: 310 mm
• Width: 400 mm
• Depth: 386 mm
• Capacity: 44 liters
• Weight: 6,5 kg

Installation and Compatibility

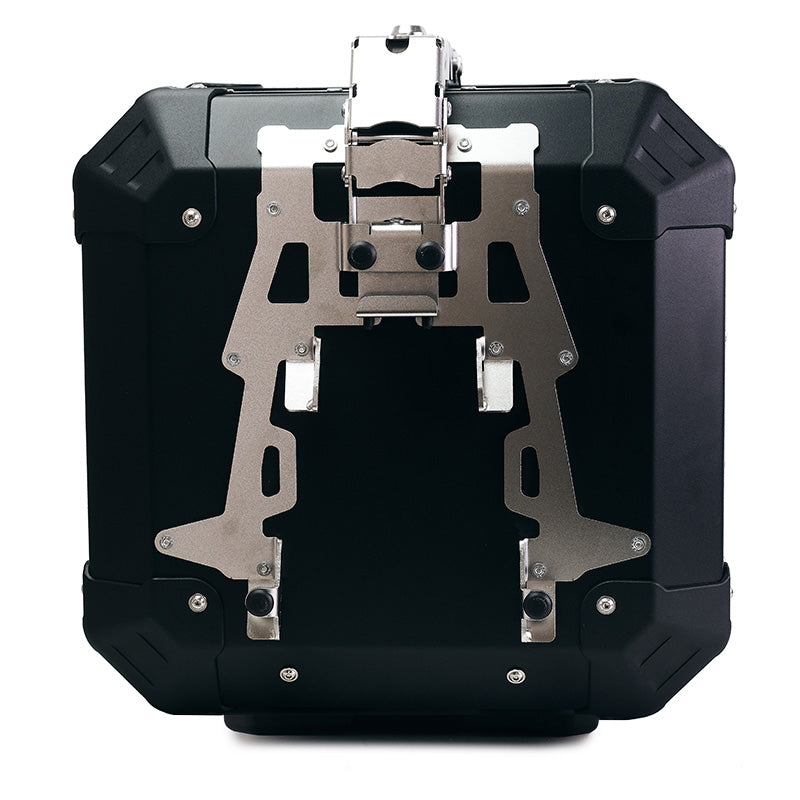

The top case can be installed on the matching Unit Garage carrier plate or on original BMW tubular luggage carriers. Before installation, always check whether the existing luggage carrier is suitable for carrying a top case. The top case is compatible with the BMW R 1200 GS LC and BMW R 1200 GS Adventure LC, among others.

Locking System and Accessories

• When purchased together with a pair of side panniers, lock cylinders with matching keys are supplied.
• On BMW models, the locking system can be matched to the motorcycle key using a separately available lock block kit.

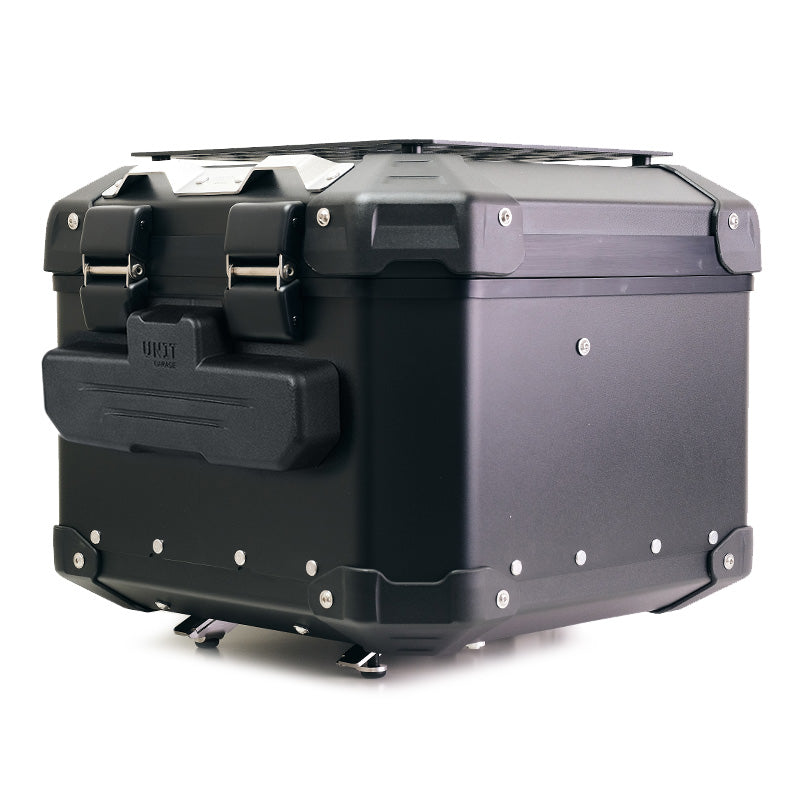

• The backrest for the top case is not included and is available separately.

Product images may show an earlier version because the product is continuously being developed.
