BMW R 120 G/S ADV [2004-2012] - Black Tank Covers

Black tank covers in classic PD style

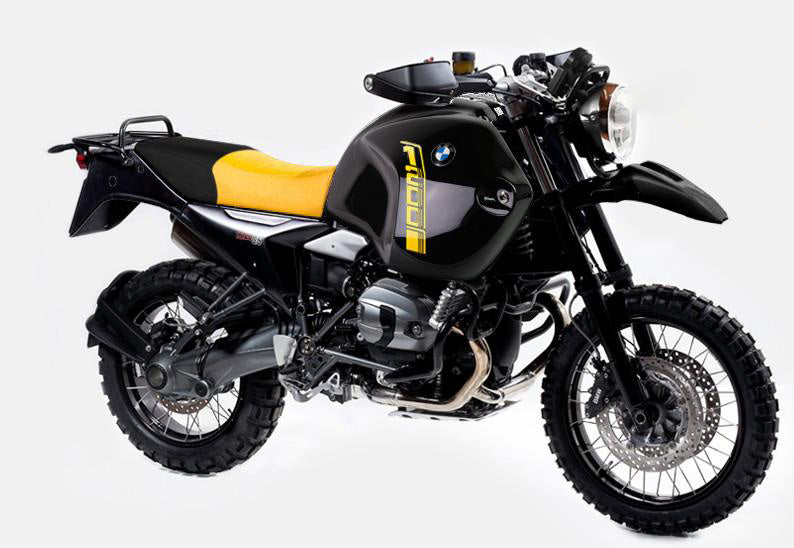

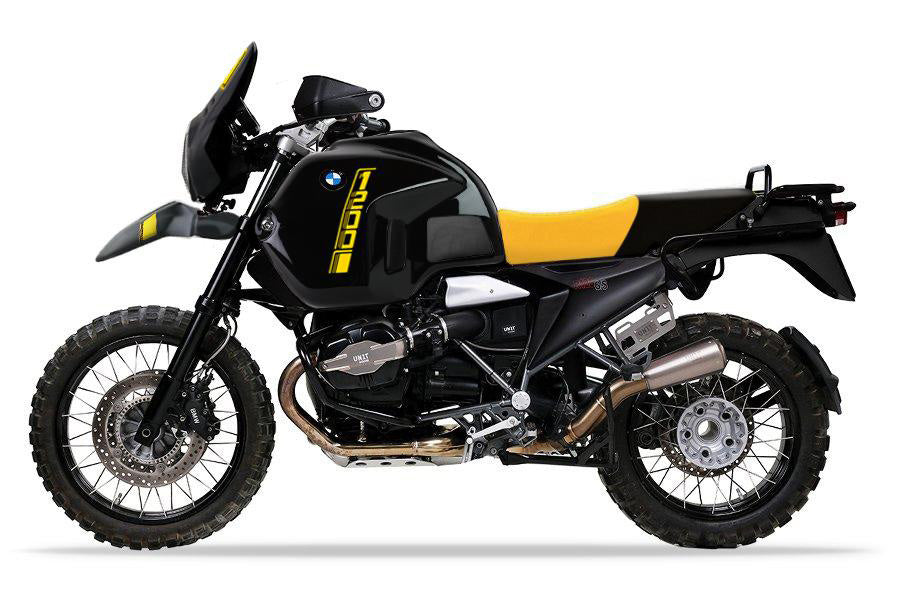

This lightweight pair of tank covers gives the BMW R1200 GS a distinctive vintage look reminiscent of the legendary PD version. The matte black covers are made from special resin with carbon-fiber reinforcements and finished with graphics and a transparent protective layer.

Material and Finish

• Special resin with carbon-fiber reinforcements
• Matte black finish with graphics
• Transparent protective layer
• Extremely lightweight construction

Installation and Function

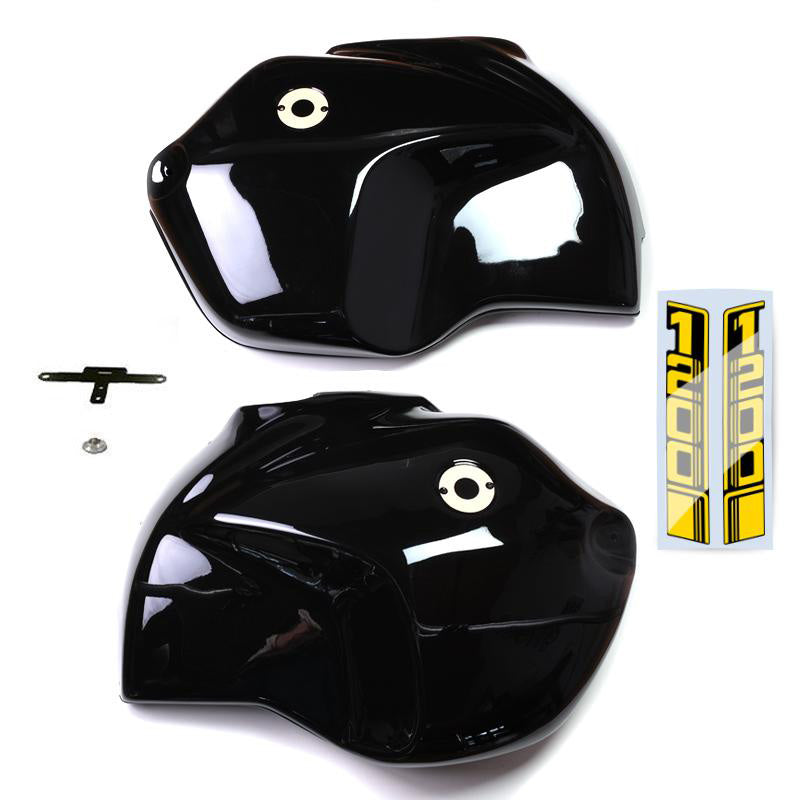

The covers are supplied ready for installation with mounting holes, screws, rubber buffers, a rear mounting bracket, and machined bushings for the front mounting points. The right side panel can be removed quickly for air-filter maintenance. The rear mounting bracket also features a slot for attaching a tank bag.

Important Installation Notes

• The three upper M5 clips used to join the two covers are transferred from the motorcycle.
• The supplied M5 x 12 mm button-head screws are inserted into these clips.
• The original pointed M5 screws must not be used, as they may damage the tank covers.
• The original side-mounted R1200-GS logos are transferred from the motorcycle or obtained separately through the official spare-parts network.

Compatibility

Suitable for BMW R1200 GS and R 120 G/S ADV from model years 2004 to 2012. Not compatible with the original GS seat. The appropriate version must be selected according to model years 2004–2007 or 2008–2012.

Unit Garage continuously develops the details of its products. The images may therefore show an earlier version.
