Honda CR 125 R (JE 01) [1992-2003] - forged pistons

WISECO forged pistons for the Honda CR 125 R

The forged WISECO forged piston is designed as a piston set for the Honda CR 125 R (JE 01) built between 1992 and 2003. The assignment supports a targeted selection of the appropriate 2-stroke engine.

Execution and function

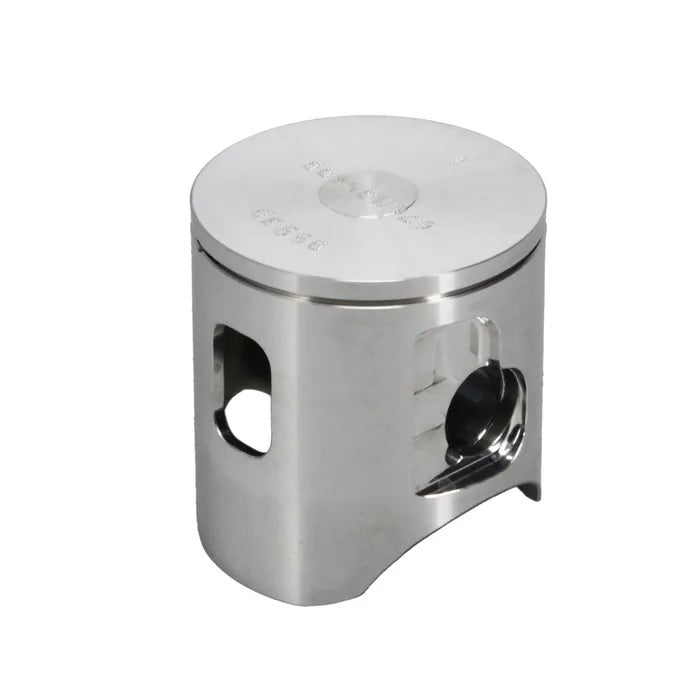

The piston is made of aluminum and belongs to the 2-stroke Pro Lite series. The standard piston compression is tailored to the intended design. As a forged construction, the piston is intended for use in the upper engine area.

Technical data

• Piston Type: Forged
• Material: aluminum
• Piston material: 4032
• Piston compression: standard
• Diameter Ø: 53.93 mm
• Bore diameter: 54.00
• Oversize: STD
• Letter oversize: A
• Stroke or version: 2T
• Product Series: 2-Stroke Pro Lite Series
• Product Type: Piston Set

Vehicle assignment

The forged piston fits the Honda CR 125 R (JE 01), built between 1992 and 2003. This assignment refers exclusively to the specified vehicle and the specified year of manufacture.

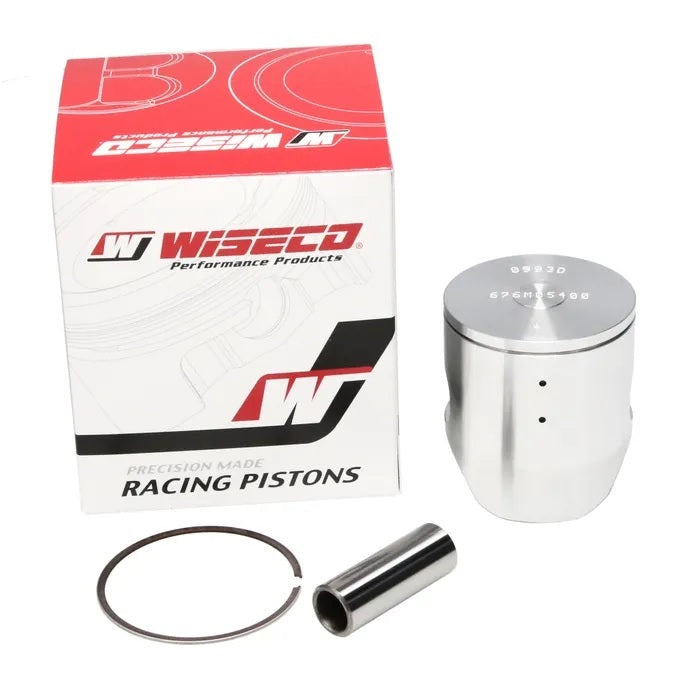

Included components

The piston set includes a ring set, a wrist pin and CirClips. The standard oversize version with the letter A makes it easier to coordinate based on the existing engine data.
