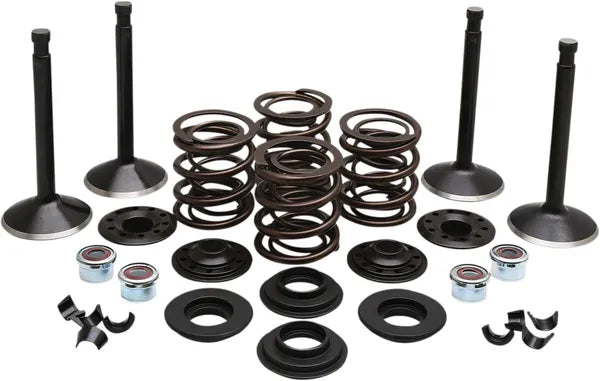

Harley Davidson FX Shovel [KIBBLEWHITE] - Engine Valve Kit

✔️ New part
ID: 15577642074438

$434.77 CAD

DELIVERY
Ready to ship | in 2-6 business days
Delivery with DHL in 7-16 business days.
PRODUCT DESCRIPTION

Engine valve kit for Harley Davidson FX Shovel

The engine valve kit from KIBBLEWHITE has been specially developed for the Harley Davidson FX Shovel. It includes all the necessary components for the engine's intake and exhaust areas and is designed for precise fit and durability.

Technical features

  • Brand: KIBBLEWHITE
  • Diameter shaft: Inlet 0.3765", outlet 0.3760"
  • Cylinder head diameter: Inlet 1.950", outlet 1.750"
  • Spring stroke: 0,415"
  • Spring force with valve closed: 129 lbs
  • Spring force at maximum stroke: 272 lbs
  • Valve seat height: 1,375"
  • Length: Inlet 3.885", outlet 3.810"
  • Material valves: Black Diamond™ stainless steel
  • Spring plate material: High temperature steel
  • Valve disc angle: Inlet 23°, outlet 29°
  • Angle tulip: Inlet 23°, outlet 29°
  • Product group: Engine Group
  • Product type: Valves and parts

Product description

The engine valve kit consists of high quality components made from Black Diamond™ stainless steel. This choice of material ensures high resistance to wear and thermal stress. The spring plates are made of high-temperature-resistant steel to ensure reliable function even under demanding operating conditions.

The kit includes intake and exhaust valves that are manufactured to precise dimensions to allow for optimal sealing and performance. The valve plate and tulip angles are tailored to the specific requirements of the Harley Davidson FX Shovel engine and contribute to efficient valve control.

The spring force values ​​are designed to ensure safe valve guidance while minimizing the load on the valve springs. The length and height of the valve seats are precisely tailored to the engine design, which supports easy installation and a long service life.

This engine valve kit is designed as a complete kit and provides all the necessary parts for comprehensive valve timing maintenance or repair. The precise manufacturing and use of high-quality materials make the kit a suitable choice for replacing or repairing the valves on the Harley Davidson FX Shovel.

Show suitable vehicles (72)
Brand model displacement Year of construction Variant country position Note
Harley Davidson FLH 1200 1186 1978-1980 Electra Glide ALL
Harley Davidson FLH 1340 1319 1979-1983 Electra Glide ALL
Harley Davidson FLHC 1319 1979 Electra Glide Classic ALL
Harley Davidson FLHC 1340 1319 1980 Electra Glide ALL
Harley Davidson FLHC 1340 1319 1981-1983 Electra Glide Classic ALL
Harley Davidson FLHS 1200 1200 1979-1980 Electra Glide Sport AMERICA
Harley Davidson FLHT 1340 1319 1983 Electra Glide ALL
Harley Davidson FLHTC 1340 1319 1983 Electra Glide Classic ALL
Harley Davidson FLT1340 1319 1980-1983 Tour Glide ALL
Harley Davidson FLTC 1340 1319 1980-1983 Tour Glide Classic ALL
Harley Davidson FX1200 1186 1978-1979 Great glide ALL
Harley Davidson FXB 1340 1319 1980-1982 Sturgis ALL
Harley Davidson FXDG 1340 1340 1983 AMERICA
Harley Davidson FXE 1200 1186 1978-1980 Great glide ALL
Harley Davidson FXE 1340 1319 1981-1983 Great glide ALL
Harley Davidson FXEF 1200 1186 1979 Fat Bob ALL
Harley Davidson FXEF 1340 1319 1979-1982 Fat Bob ALL
Harley Davidson FXR 1340 II 1319 1982-1983 Super Glide II ALL
Harley Davidson FXRS 1340 II 1319 1982 Super Glide II ALL
Harley Davidson FXS 1200 1186 1978-1979 Low Rider ALL
Harley Davidson FXS 1340 1319 1979-1983 Low Rider ALL
Harley Davidson FXWG 1340 1319 1980-1983 Wide Glide ALL
Harley Davidson XLCH 1000 987 1978 Sportster ALL
Harley Davidson XLCR 1000 987 1978 Cafe Racer ALL
Harley Davidson XLH 1000 987 1978-1983 Sportster ALL
Harley Davidson XLS 1000 987 1979-1982 Roadsters ALL
Harley Davidson XLS 1000 987 1983 Roadster Custom Sport ALL
Harley Davidson XLT 1000 987 1978 Sportster ALL
Harley Davidson XLX 1000 987 1983 Sportster ALL
