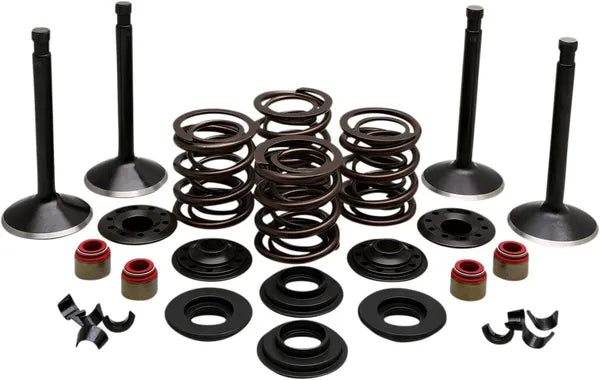

Harley Davidson FX Shovel [KIBBLEWHITE] - Engine Valve Kit

KIBBLEWHITE Engine Valve Kit for Harley Davidson FX Shovel

The engine valve kit from KIBBLEWHITE has been specially developed for use in the Harley Davidson FX Shovel engine. It includes inlet and exhaust valves as well as the associated springs and spring seats. The components are made of high-quality materials to ensure reliable function and a long service life.

Technical features

• Valve diameter shaft: Inlet 0.3765 inch, outlet 0.3760 inch
• Valve diameter on the cylinder head: Inlet 1.950 inches, outlet 1.750 inches
• Spring stroke: 0.415 inch
• Spring force: 129 lb with valve closed, 272 lb at maximum lift
• Valve seat height: 1.375 inches
• Valve length: Inlet 3.885 inches, outlet 3.810 inches
• Valve disc angle: Inlet 23°, outlet 29°
• Angle of the valve tulip: Inlet 23°, outlet 29°
• Material valves: Black Diamond™ stainless steel
• Spring plate material: High temperature steel
• Product group: Engine group (ENGINE GROUP)
• Product type: Valves and spare parts (VALVES + PARTS)

Product scope

The kit includes all the necessary valves for intake and exhaust as well as the matching valve springs and spring plates. It is designed as a complete engine set and enables a comprehensive renewal of the valve control in the engine of the Harley Davidson FX Shovel.

The use of Black Diamond™ stainless steel ensures high wear resistance and temperature resistance of the valves. The spring plates made of high-temperature-resistant steel support the long-term function of the valve springs under load. The precise dimensions and angles ensure optimal fit and function in the cylinder head.

This engine valve kit is suitable for workshops and experienced mechanics who want to carry out professional maintenance or repair of the valve control on the Harley Davidson FX Shovel. The combination of material quality and precise construction contributes to reliable engine performance.
